Starship Captain

Starship Captain is a game about maneuvering a starship to the end of the level. The game features 8 different ships. Each wackier and harder to control than the last. Master the gimmick of each ship and reach the docking point without colliding with obstacles. On your journey you will experience moving obstacles, asteroids, gravity, atmosphere, lasers, and electromagnetic fields.

Downloads

Technical Information

Project Details

IDE: Gamemaker
Languages: GML, GLSL ES
Stage: Shelved Alpha, Polished Demo

Notable Features

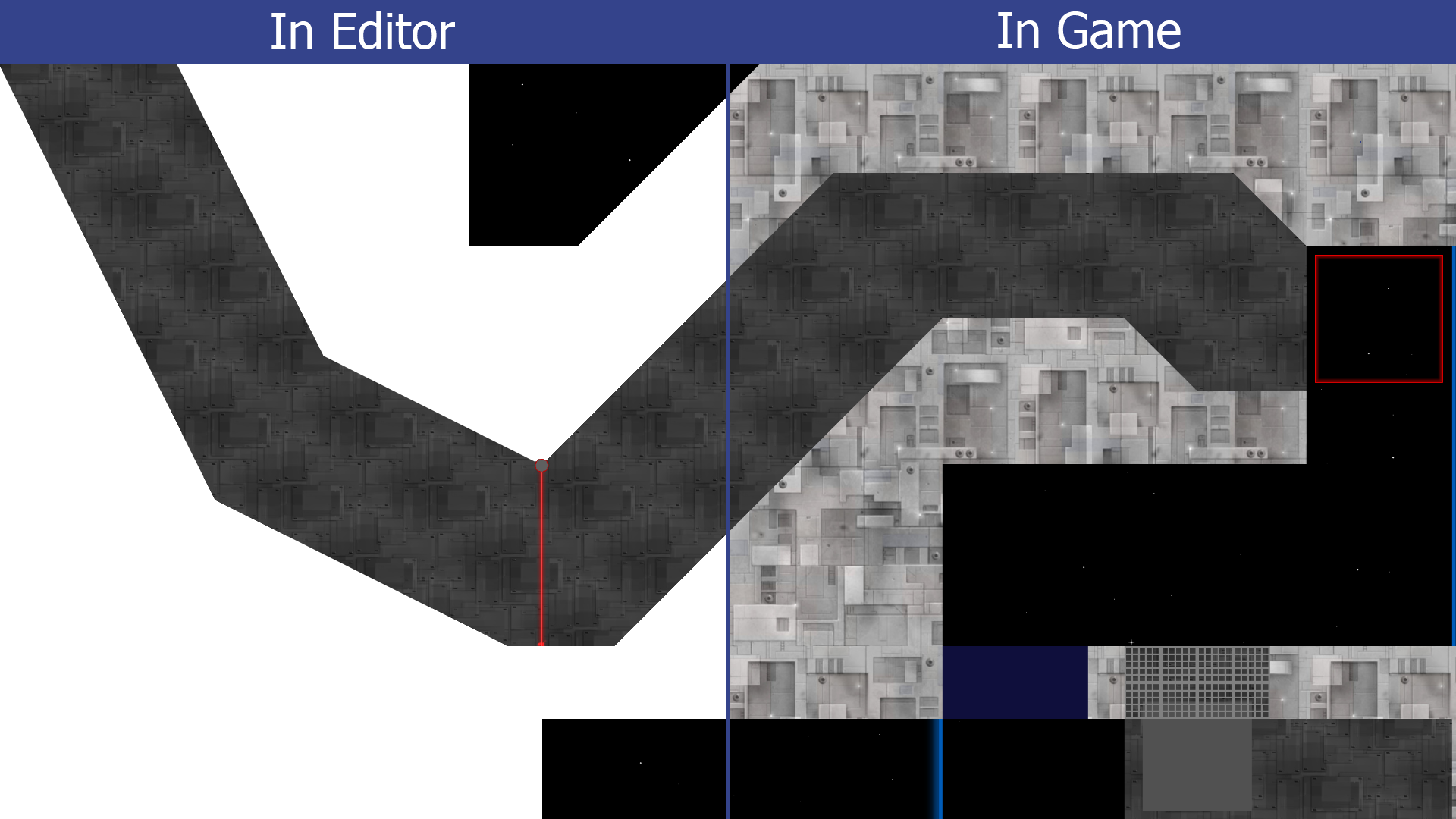

This shader applies a texture to the wall objects seamlessly.

Effect Example

Texture Masking

Shader Code

//Vertex Shader
attribute vec3 in_Position; // (x,y,z)
attribute vec4 in_Colour; // (r,g,b,a)
attribute vec2 in_TextureCoord; // (u,v)
varying vec2 v_vTexcoord;
varying vec4 v_vColour;
varying vec2 v_vPos;
void main() {
	vec4 object_space_pos = vec4( in_Position.x, in_Position.y, in_Position.z, 1.0);
	gl_Position = gm_Matrices[MATRIX_WORLD_VIEW_PROJECTION] * object_space_pos;
	v_vColour = in_Colour;
	v_vTexcoord = in_TextureCoord;
	v_vPos = in_Position.xy;
}

//Fragment Shader
varying vec2 v_vTexcoord; // (x,y,z)
varying vec4 v_vColour;  // (r,g,b,a)
varying vec2 v_vPos;  // (x,y)
uniform vec4 uvs; // (x,y,z,w) (left, top, width, height)
uniform vec2 texture_size; //(inverse)
uniform sampler2D texture;
void main() {
	vec2 texCoord = fract(v_vPos * texture_size) * uvs.zw + uvs.xy; //(tile position) * (texture size) + (texture_offset)
	vec4 new_texture = texture2D(gm_BaseTexture, texCoord);
	vec4 old_texture = texture2D(gm_BaseTexture, v_vTexcoord);
	gl_FragColor = vec4(new_texture.rgb, v_vColour.a * old_texture.a);
}

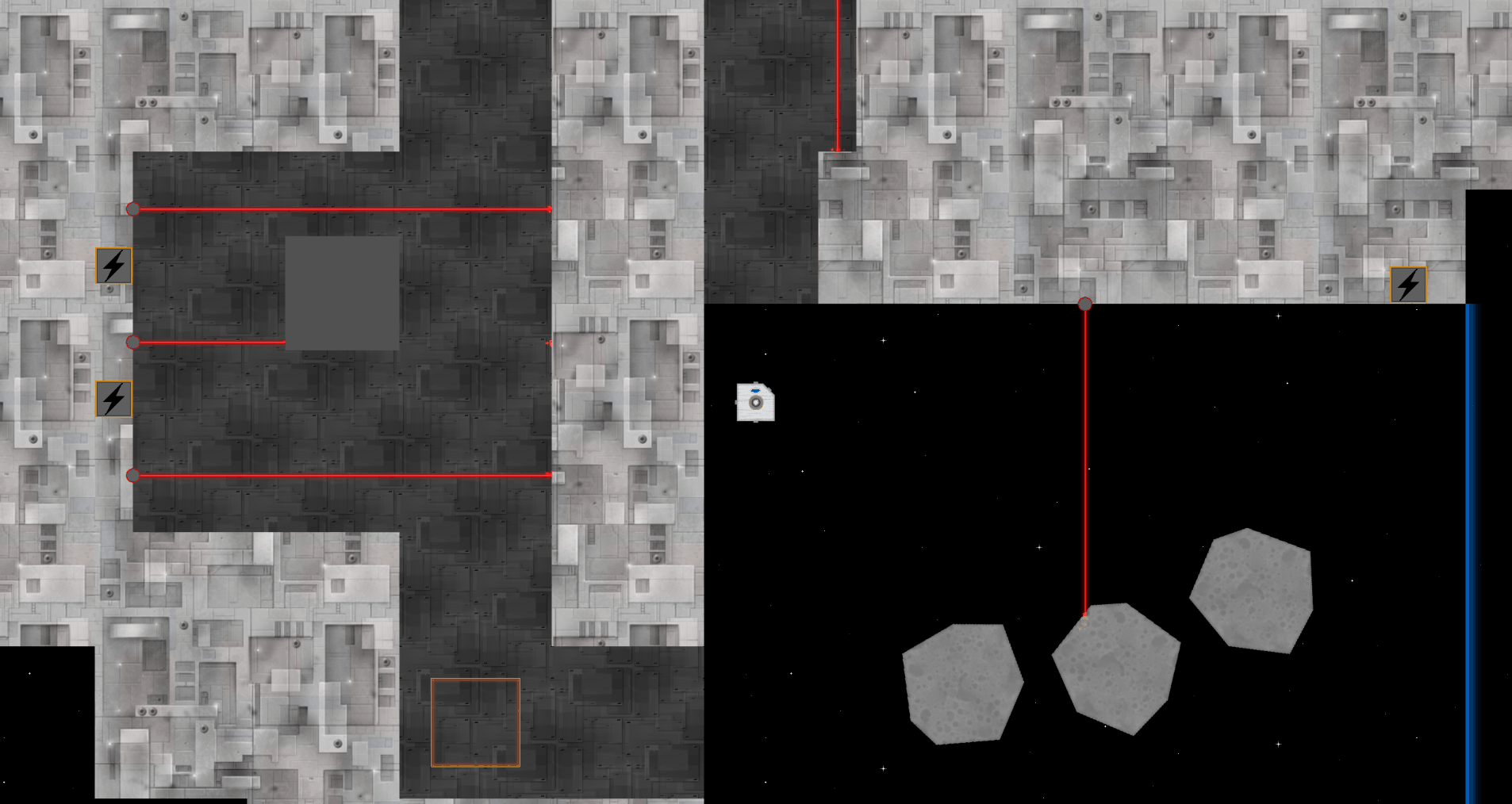

Starship Captain has lasers as obstacles. These lasers have a dynamic distance. The following code is responsible for determining the new length of a laser if it has been interrupted or if the object it was colliding with has moved.

Effect Example

Laser Collision Point Detection

Code

//Laser Collision Detection
/*EndPoint refers to furthest point the laser is reaching
sourceXY refers to the start position of the laser*/
if ((inView = 1){
	endPointCurrent = collisionPoint(sourceX, sourceY, angle, length + 1) //Return object ID at end point or 0 if none. +1 to account for rounding/floating point errors
	endPointDifference = endPointOld - endPointCurrent

	if (endPointCurrent = 0)
		length = maxLength

	betweenPoint = scr_collisionLineVector(sourceX, sourceY, angle, length - 1) // -1 to exclude current collision

	if ((endPointDifference != 0) or (betweenPoint != 0))
		length = scr_findCollisionPoint(sourceX, sourceY, angle, length)

	endPointOld = endPointCurrent
}

///scr_findCollisionPoint(sourceX, sourceY, angle, length)
var testX = sourceX
var testY = sourceY
var lengthX, lengthY

while( abs(length) > 1){
	length *= 0.5
	if (scr_collisionLineVector(testX, testY, angle, length)) = 0{
		lengthX = lengthdir_x(length, angle) //GM way to do sin/cos
		lengthY = lengthdir_y(length, angle)
		testX += lengthX
		testY += lengthY
	}
}

var newLength = abs(point_distance(sourceX, sourceY, _testX, _testY)) //GM way to find vector magnitude
return newLength

Starship Captain has an analytics server. The server tracks various metrics and stores leaderboard data. Logs are kept for each day and seperate logs are kept for each user. Obstacle collision coordinates/vectors are stored per incident, per level.

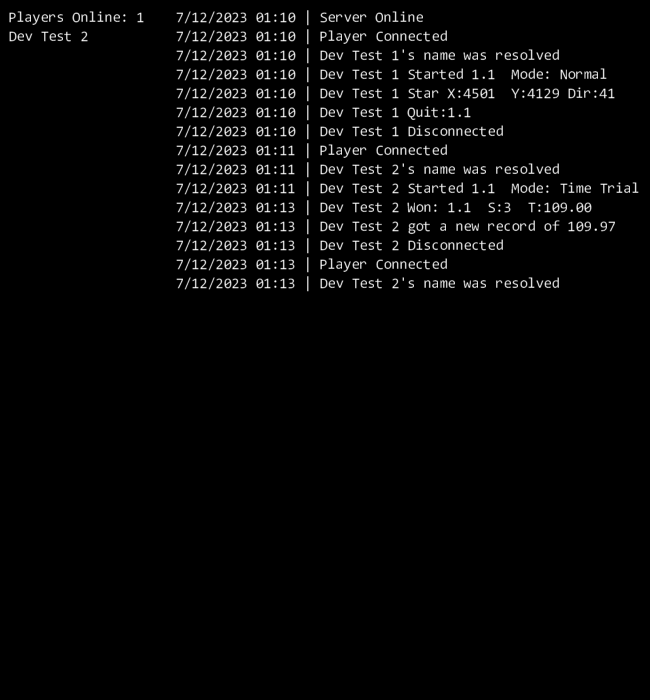

Server Console

Server Console

Data Collected

  • Connections
  • Disconnections
  • Usernames
  • Startirng level and mode
  • Quiting a level
  • Winning a level, time, and stars
  • Obstacle collision x, y, and ship's direction

Code Example

//scr_incoming
buffer = argument0
socket = argument1

buffer_seek(buffer, buffer_seek_start, 0)
messageId = buffer_read(buffer, buffer_u8)
switch (messageId) {
	case NAME: scr_name_s(buffer, socket); break;
	case SENDRECORD: scr_sendrecord(buffer, socket); break;
	case GETRECORD: scr_getrecord(buffer, socket); break;
	case GETBOARD: scr_getboard(buffer, socket); break;
	case WIN: scr_win(buffer, socket); break;
	case STARLOSS: scr_starloss(buffer, socket); break;
	case LEVELLOSS: scr_levelloss(buffer, socket); break;
	case LEVELSTARTED: scr_levelstart(buffer, socket); break;
	case LEVELQUIT: scr_levelquit(buffer, socket); break;
	case VERSION: scr_version(buffer, socket); break;
}

//scr_starloss (Obstacle Collision)
buffer = argument0
socket = argument1

name = buffer_read(buffer, buffer_string)
zone = buffer_read(buffer, buffer_u8)
level = buffer_read(buffer, buffer_u8)
shipX = buffer_read(buffer, buffer_u32)
shipY = buffer_read(buffer, buffer_u32)
shipDir = buffer_read(buffer, buffer_u32)

logString = name + " Star X:" + string(shipX) + "  Y:" + string(shipY) + " Dir:" + string(shipDir)
write_console(logString)
write_log(logString)
write_user(logString, name)
write_starLoss(zone, level, shipX, shipY, shipDir)

What I learned

Lessons

When working on Starship Captain I learned about fragment and vertex shaders. Fragment shaders are used to apply a background blur affect and fragment shaders are used to apply a texture mask to walls. I was also able to apply optimization techniques I learned in Data Structures and Algorithms. I modified the laser collision point algorthim from doing N point collision calls to Log(N) line collision calls. (N being the max distance of the laser). This project also prompted the development of custom external tools. Particularly for altering UI placement during runtime. A level editor to speed up development was also in the works. The final thing I learned when working on this project was how to make an analytics server through gamemaker.

Mistakes

The main mistake that plagued this project was a lack of version control. Its riddled with objects and code that are no longer used.

Image Gallery

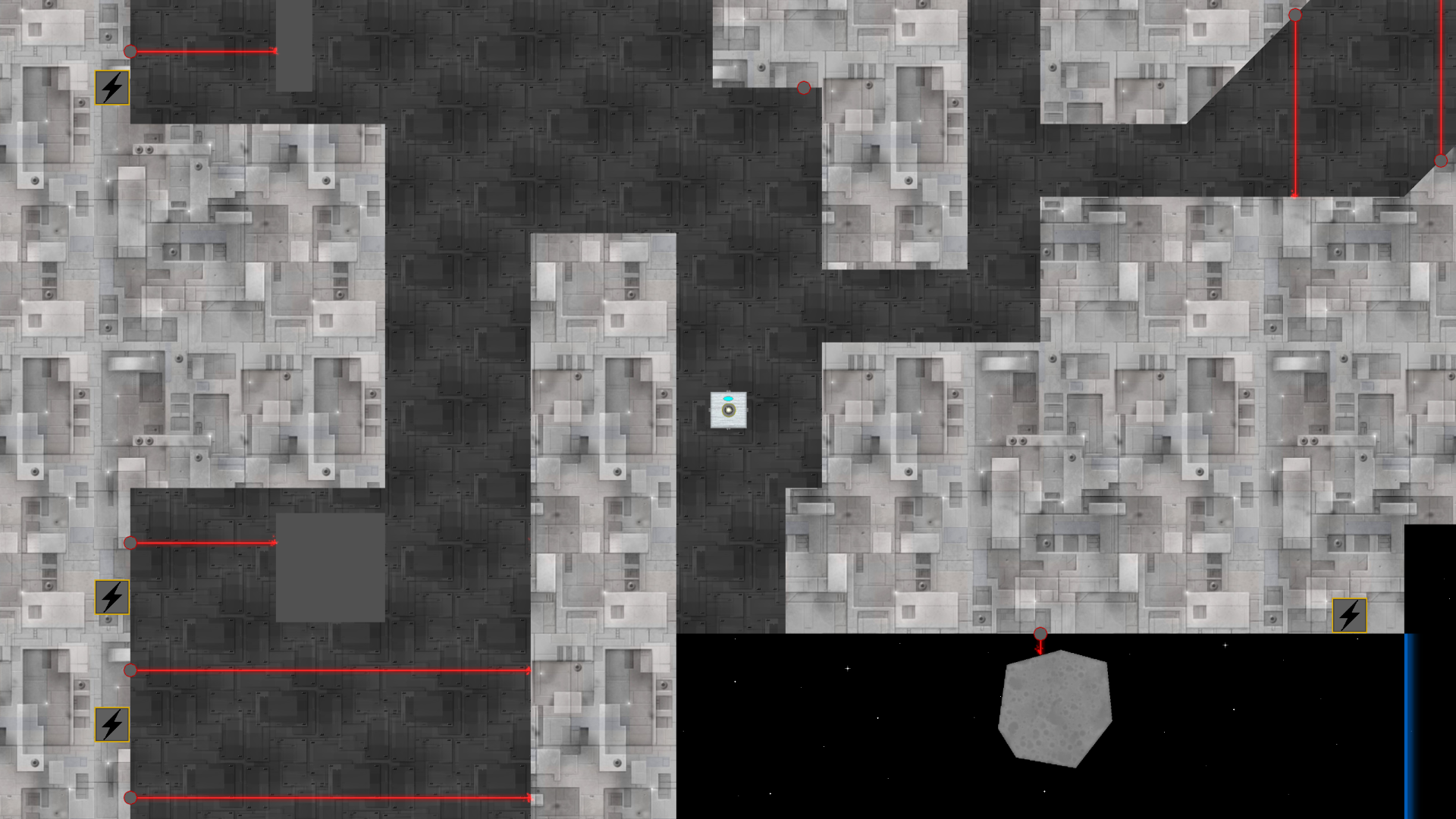

Image 1

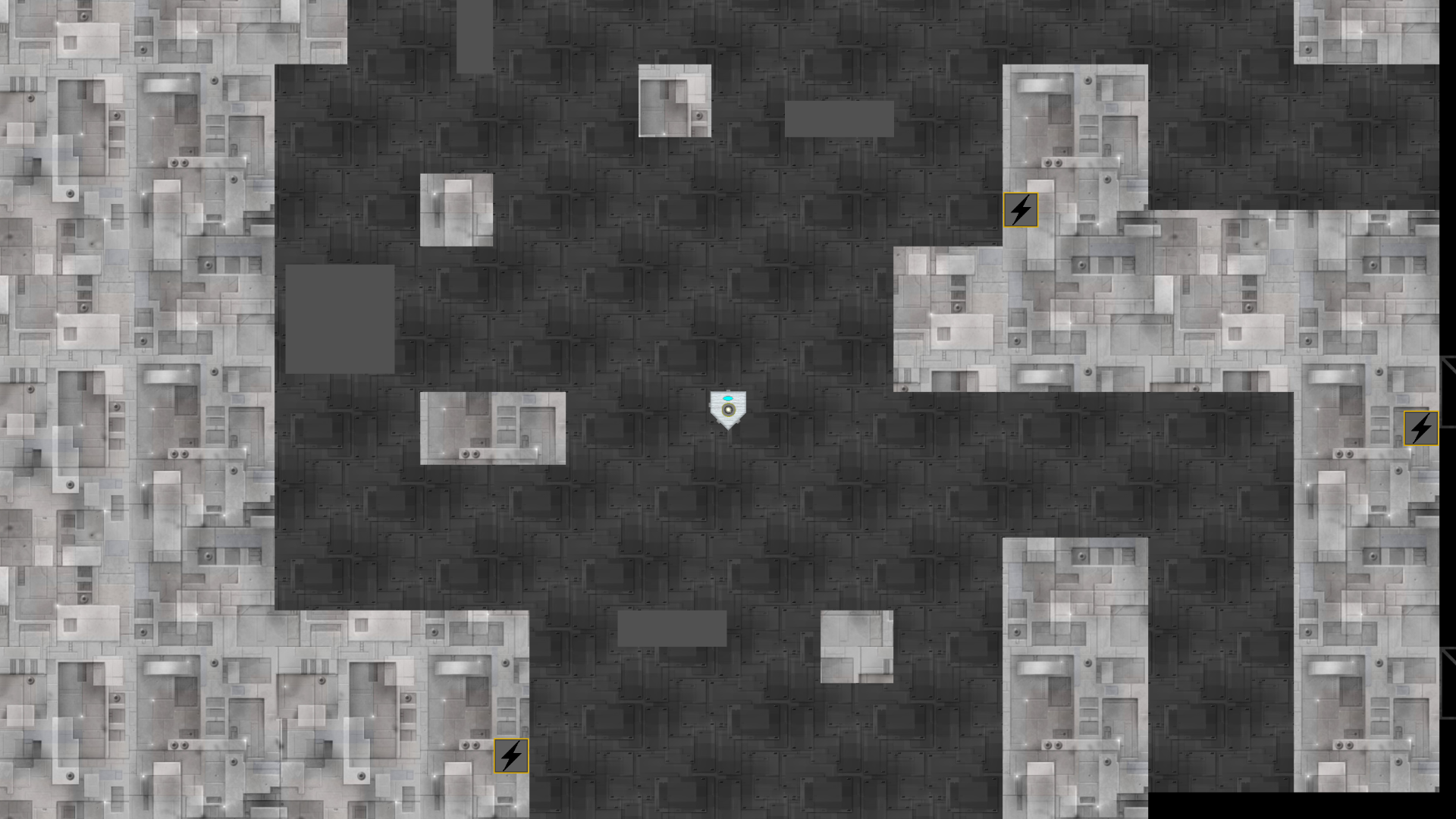

Image 2

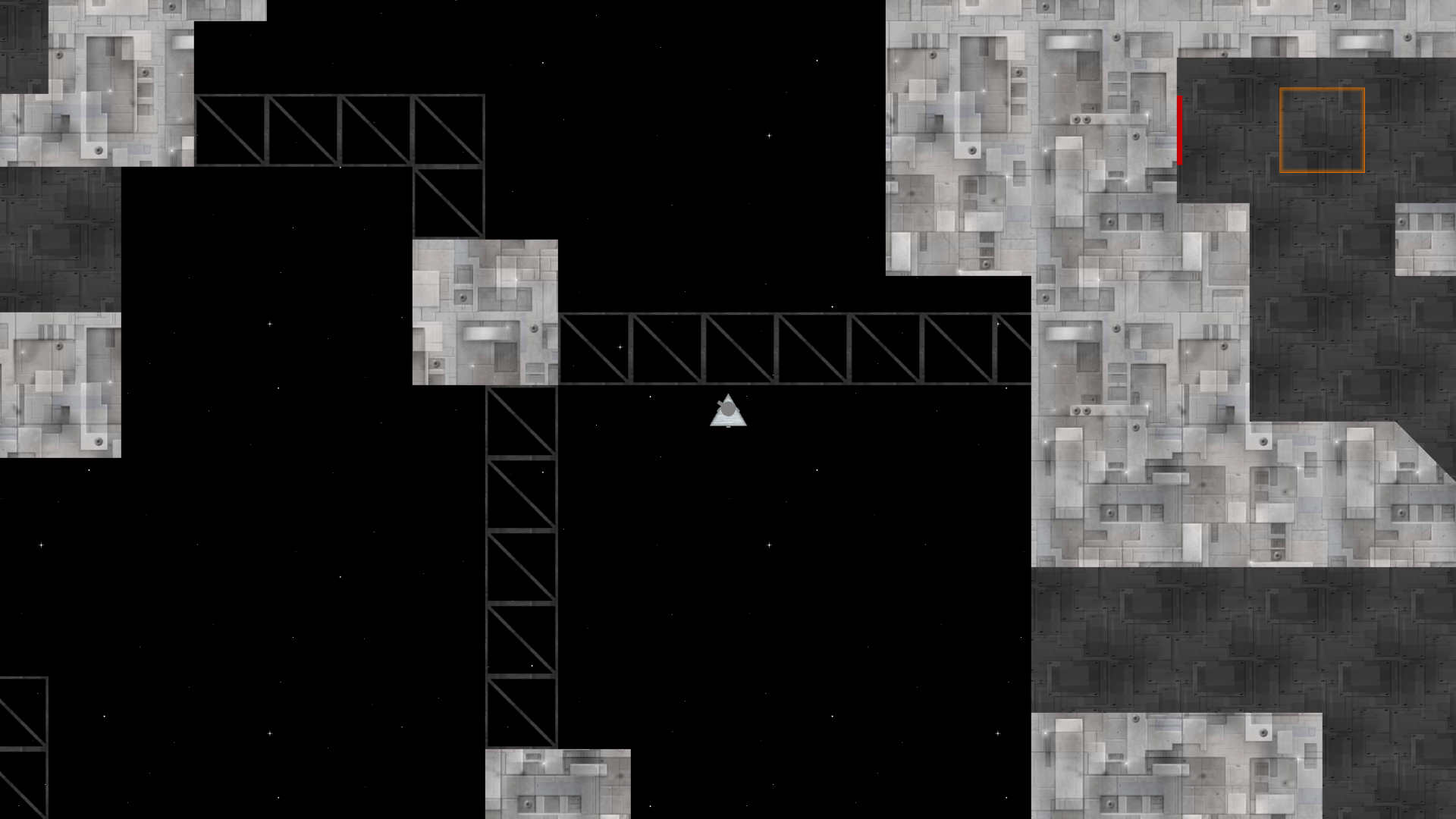

Image 3

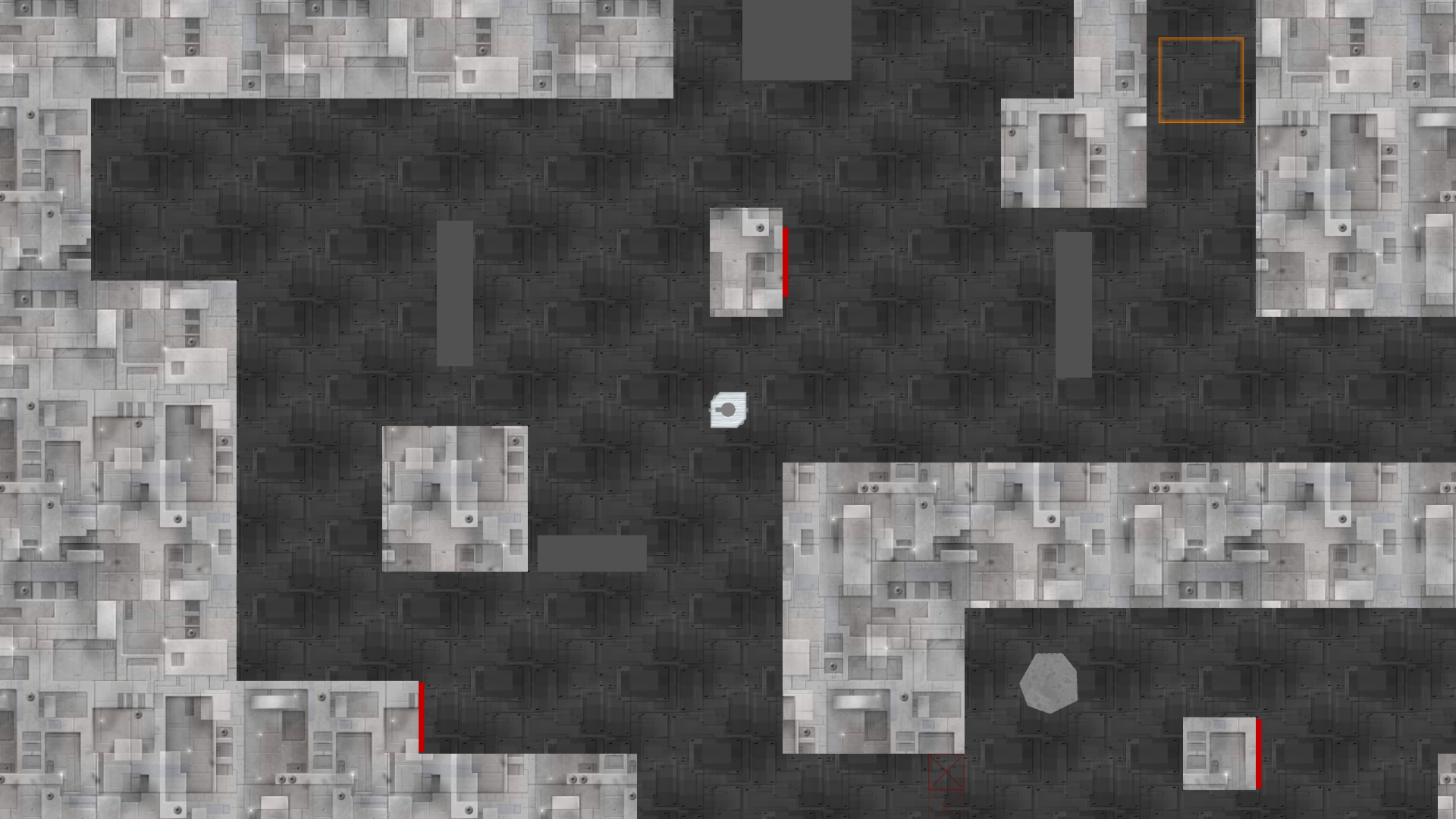

Image 4
